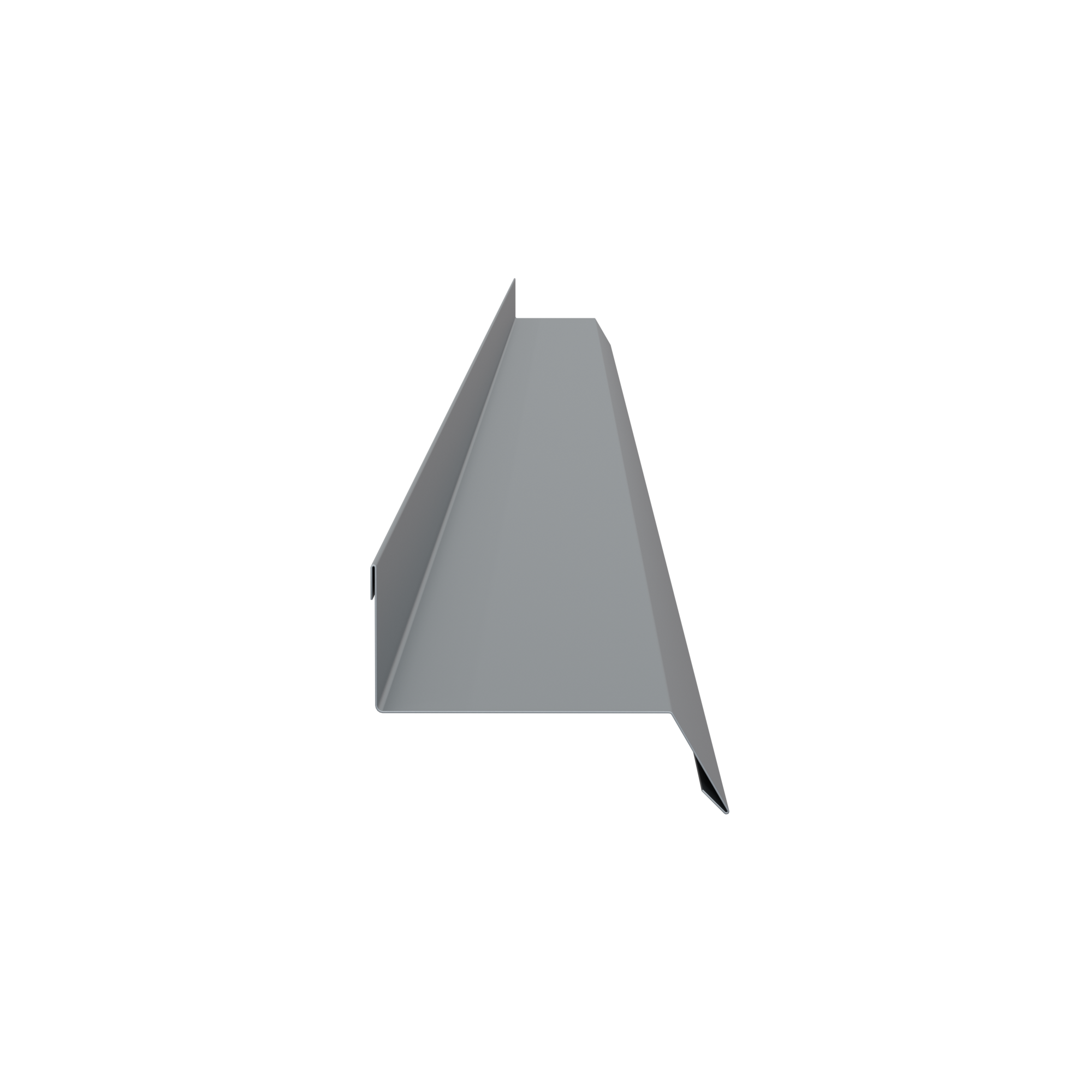

013A Masking strip 013A
Product description
Masking/starting strip 013A
Technical data
Application: wall-mounted PolTherma TS/TS X /DS/PS/CS/CS X, ThermaStyle PRO

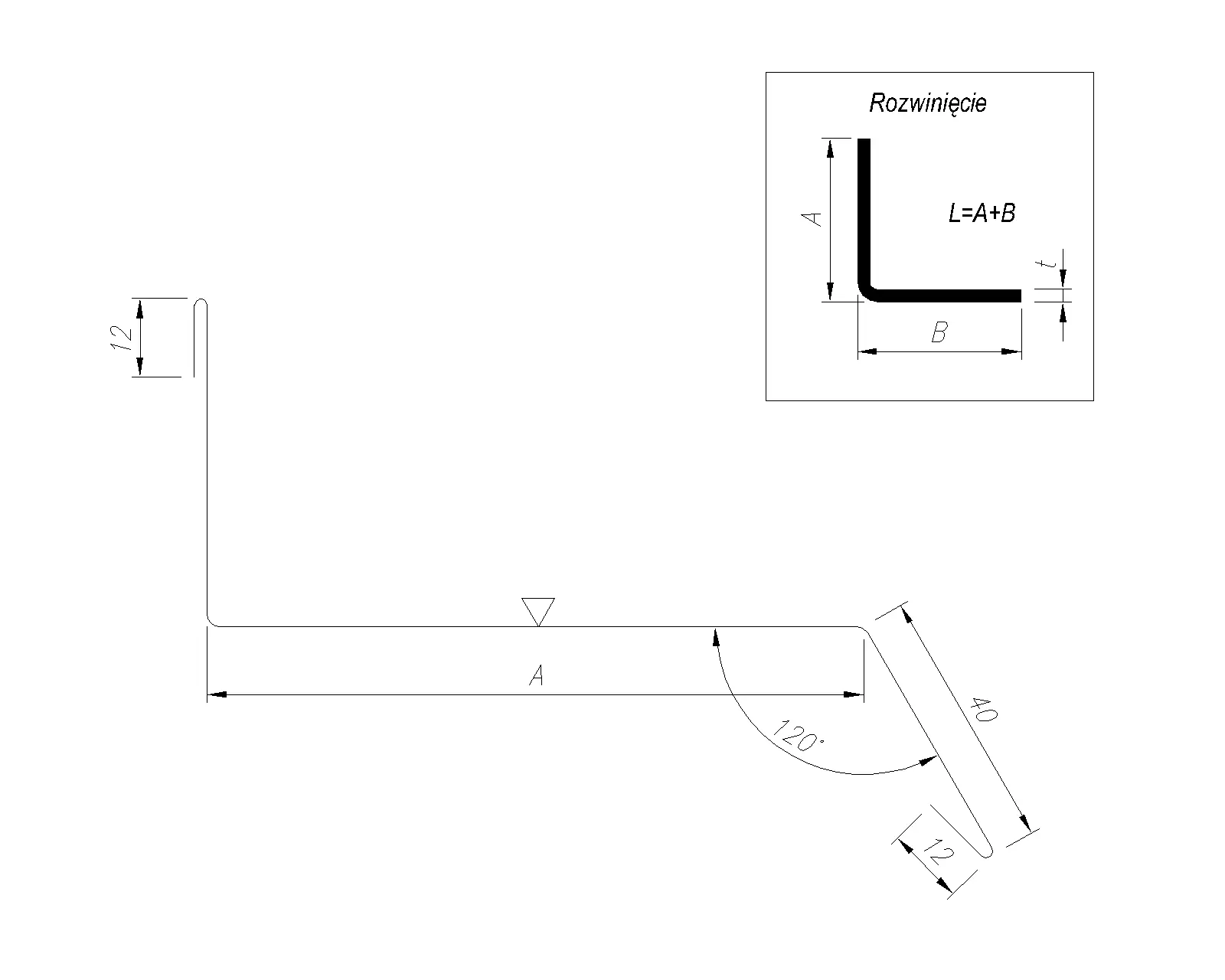

| Panel thickness [mm]. | A [mm]. | B [mm]. | K [*] | Sheet thickness | Unfolded width [mm]. | Lengths [mm]. | Weight [kg/mb] |
| 40 | 70 | – | – | 0,5 | 184 | 1250;2000;2500 | 0,72 |
| 50 | 80 | – | – | 0,5 | 194 | 1250;2000;2500 | 0,76 |
| 60 | 90 | – | – | 0,5 | 204 | 1250;2000;2500 | 0,80 |
| 75 | 105 | – | – | 0,5 | 219 | 1250;2000;2500 | 0,86 |
| 80 | 110 | – | – | 0,5 | 224 | 1250;2000;2500 | 0,88 |
| 100 | 130 | – | – | 0,5 | 244 | 1250;2000;2500 | 0,96 |
| 120 | 150 | – | – | 0,5 | 264 | 1250;2000;2500 | 1,04 |
| 125 | 155 | – | – | 0,5 | 269 | 1250;2000;2500 | 1,06 |
| 150 | 180 | – | – | 0,5 | 294 | 1250;2000;2500 | 1,15 |
| 160 | 190 | – | – | 0,5 | 304 | 1250;2000;2500 | 1,19 |
| 200 | 230 | – | – | 0,5 | 344 | 1250;2000;2500 | 1,35 |
| 250 | 280 | – | – | 0,5 | 394 | 1250;2000;2500 | 1,55 |
| 300 | 330 | – | – | 0,5 | 444 | 1250;2000;2500 | 1,74 |
