PolTherma TS Coffered Micro MK550
PU wall sandwich panel PolTherma TS
Excellent insulation and fire resistance of EI 30
Product description
PolTherma TS is a wall sandwich panel with a core of rigid PU foam, fixed to the support structure with a fastener passing through the entire thickness of the panel (through). Its main advantages are high rigidity and strength, simplicity of installation, very favorable coverage width (1130 mm) and the use of a special gasket at the joint, improving the tightness of the joint.
PolTherma TS is an example of a classic sandwich panel using the latest polyurethane technology. PolTherma TS is an excellent choice for agro-construction.
Greater resistance to thermal deformation for new profiling:

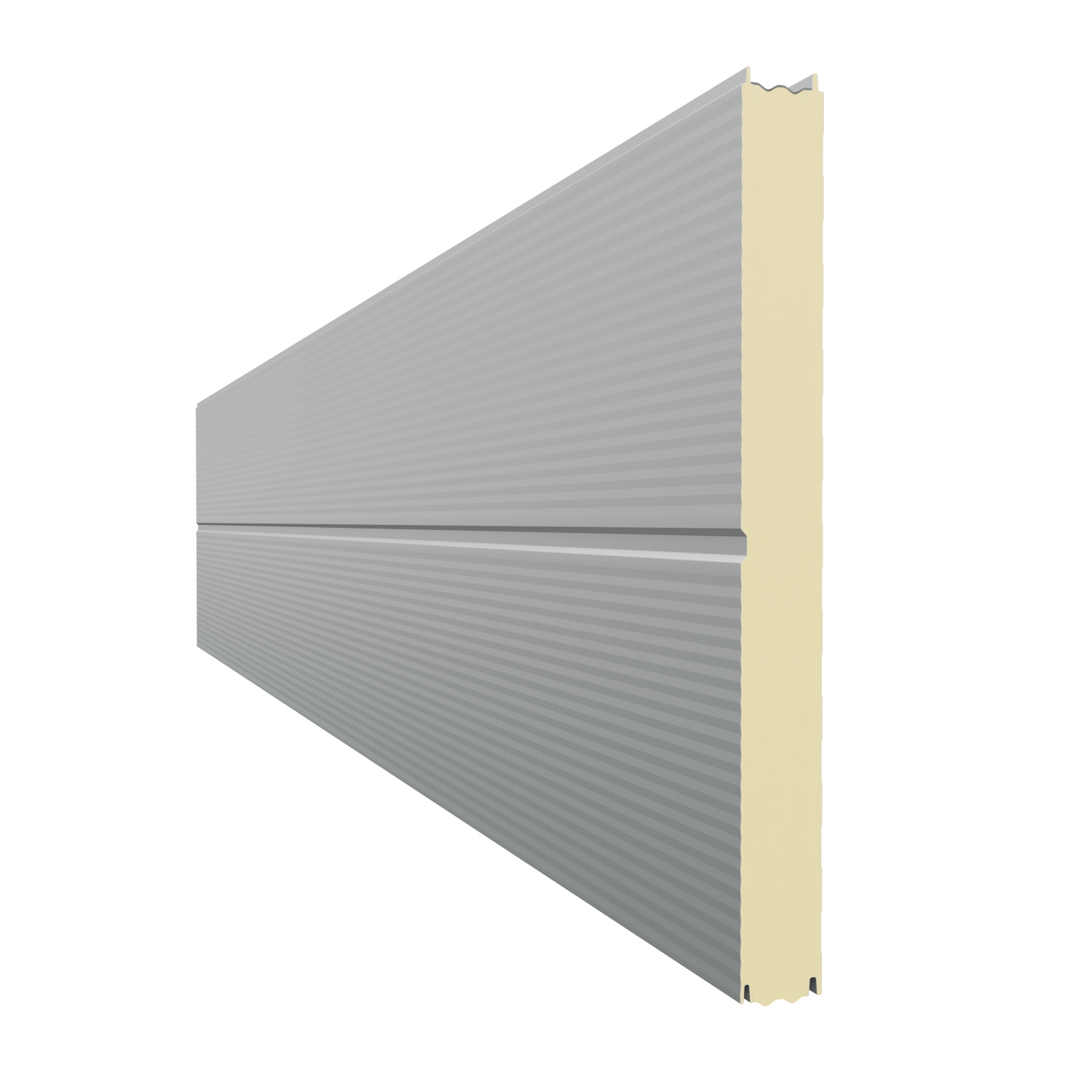

- Microcassette profiling 550 – PolTherma TS MK550
Available profiling:
- linear profiling – PolTherma TS L
- micro profiling – PolTherma TS M
- groove profiling – PolTherma TS R
PolTherma TS panels can be mounted vertically as well as horizontally to various support structures: steel, wood, reinforced concrete.
PolTherma TS sandwich panel – application
- Commercial facilities
- Industrial facilities
- Halls
- Agribusiness
- Logistics centers
- Warehouses
Technical data

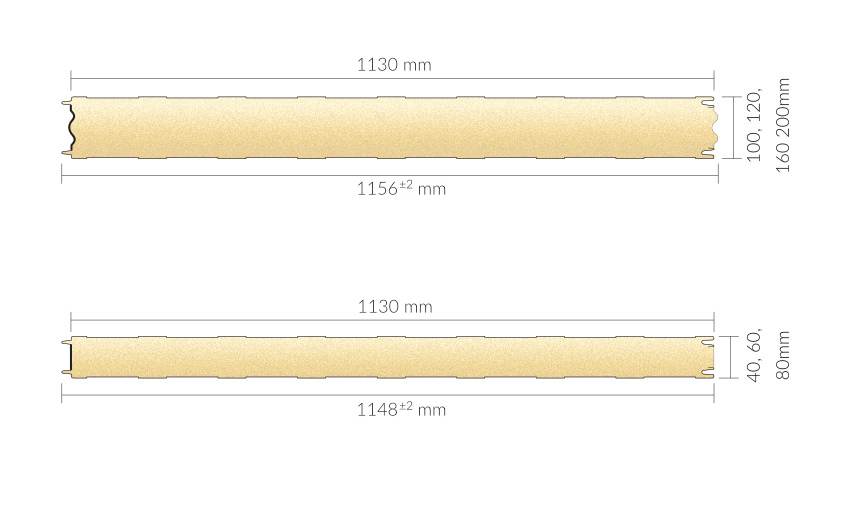

| Modular (coverage) width [mm]. | 1130 |
|---|---|
| Fire resistance | EI 15; EI 30 |
| Core | Europan PU Wall System Core – rigid polyurethane foam, λD = 0.022 W/(m∙K) at +10°C including the effect of aging, according to PN-EN 14509:2013-12 |
| Available board thicknesses [mm] |
Thermal Conductivity λD [W/(m∙K)] |
The heat transfer coefficient Ud, S for profiling: M, R, L, P [W/(m²∙K)]. | The heat transfer coefficient Ud, S for profiling: K, MK550 [W/(m²∙K)]. | Weight 1 m² [kg] |
Maximum number of discs in a package [pcs]. |
|---|---|---|---|---|---|
| 40 | 0,022 | 0,58 | 0,71 | 10,4 | 28 |
| 60 | 0,022 | 0,37 | 0,42 | 11,2 | 18 |
| 80 | 0,022 | 0,28 | 0,30 | 11,9 | 14 |
| 100 | 0,022 | 0,22 | 0,24 | 12,7 | 11 |
| 120 | 0,022 | 0,18 | 0,20 | 13,5 | 9 |
| 160 | 0,022 | 0,14 | 0,14 | 15,1 | 7 |
| 200 | 0,022 | 0,11 | 0,11 | 16,5 | 5 – 6 |

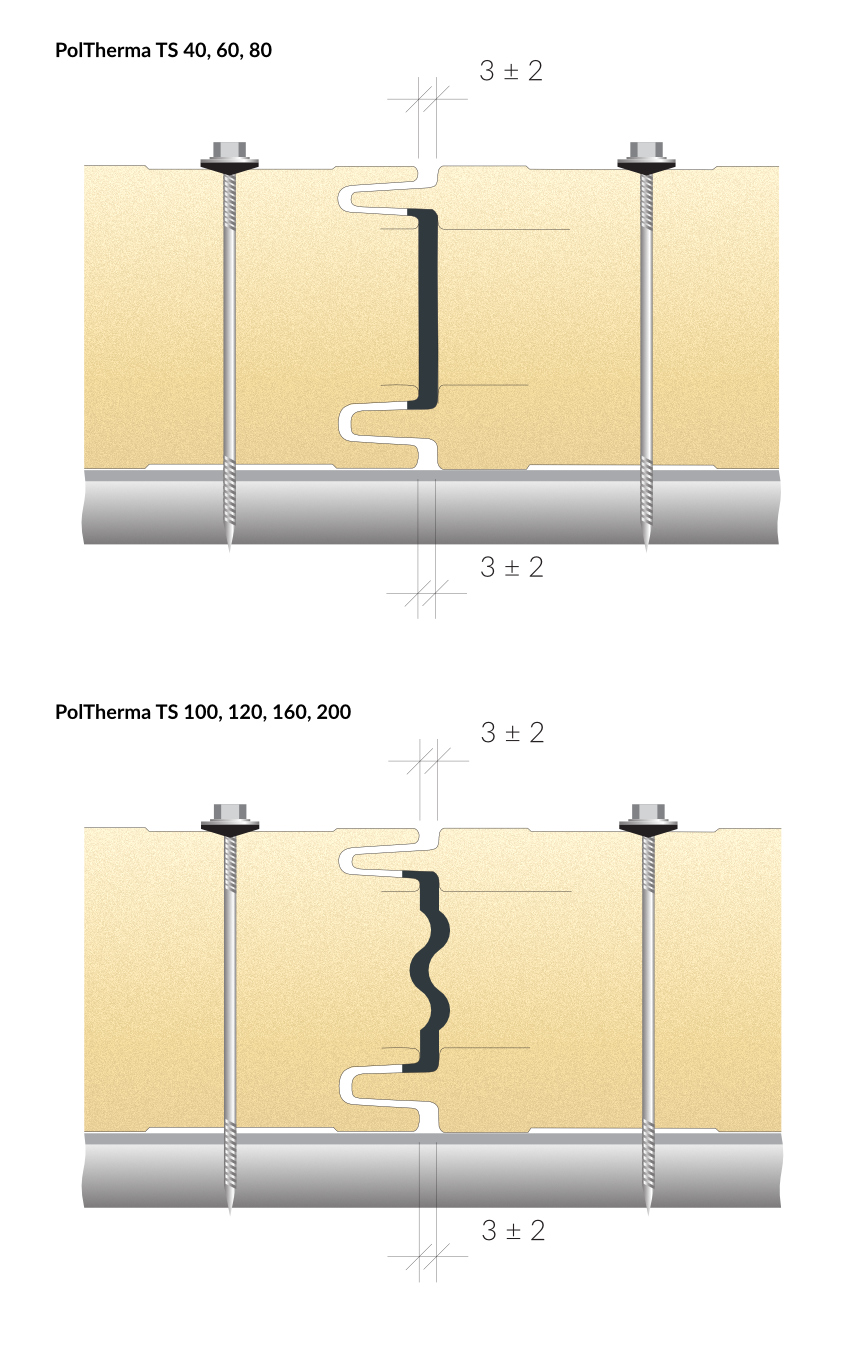

Connections
Profiling
PolTherma TS Groove R

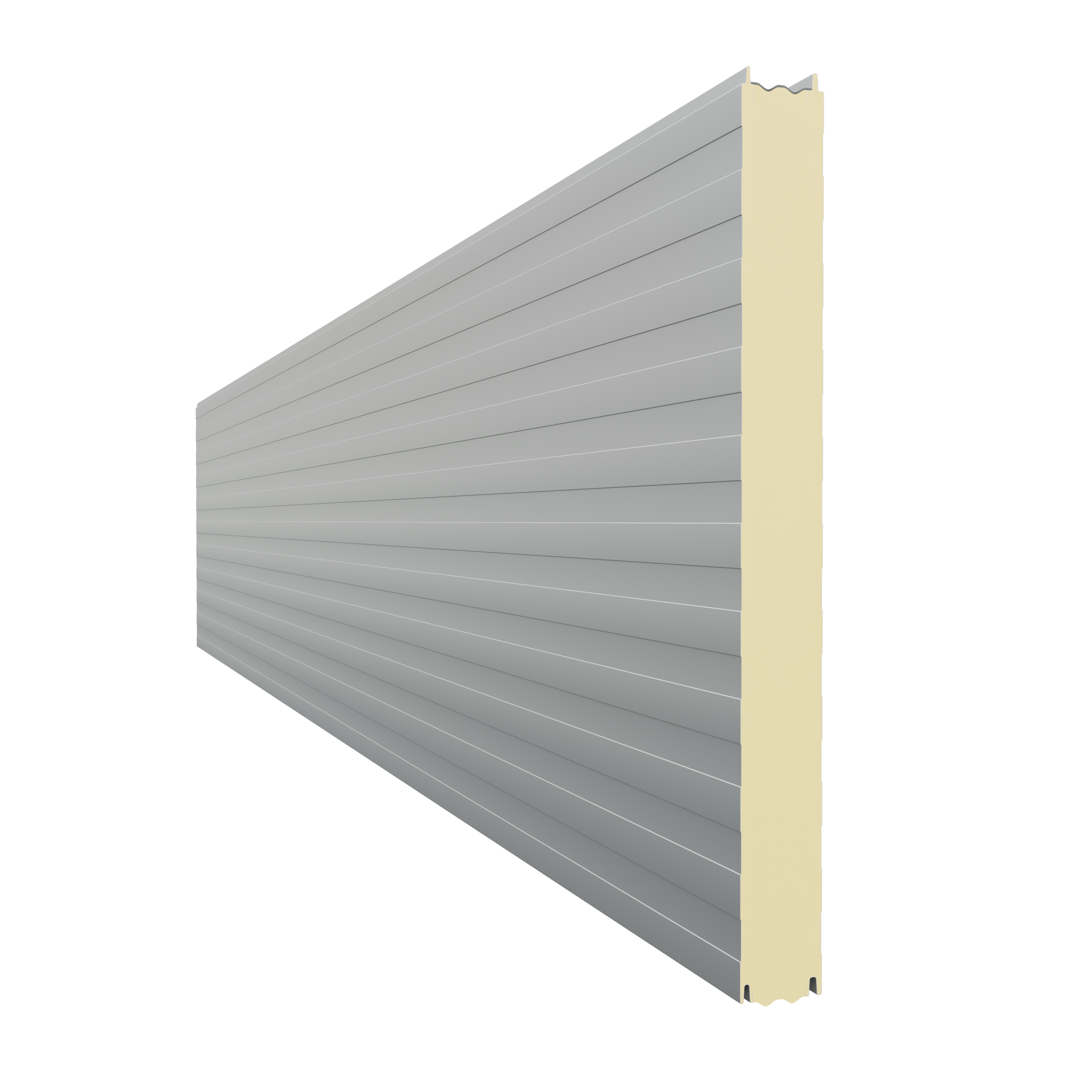

PolTherma TS Linear L

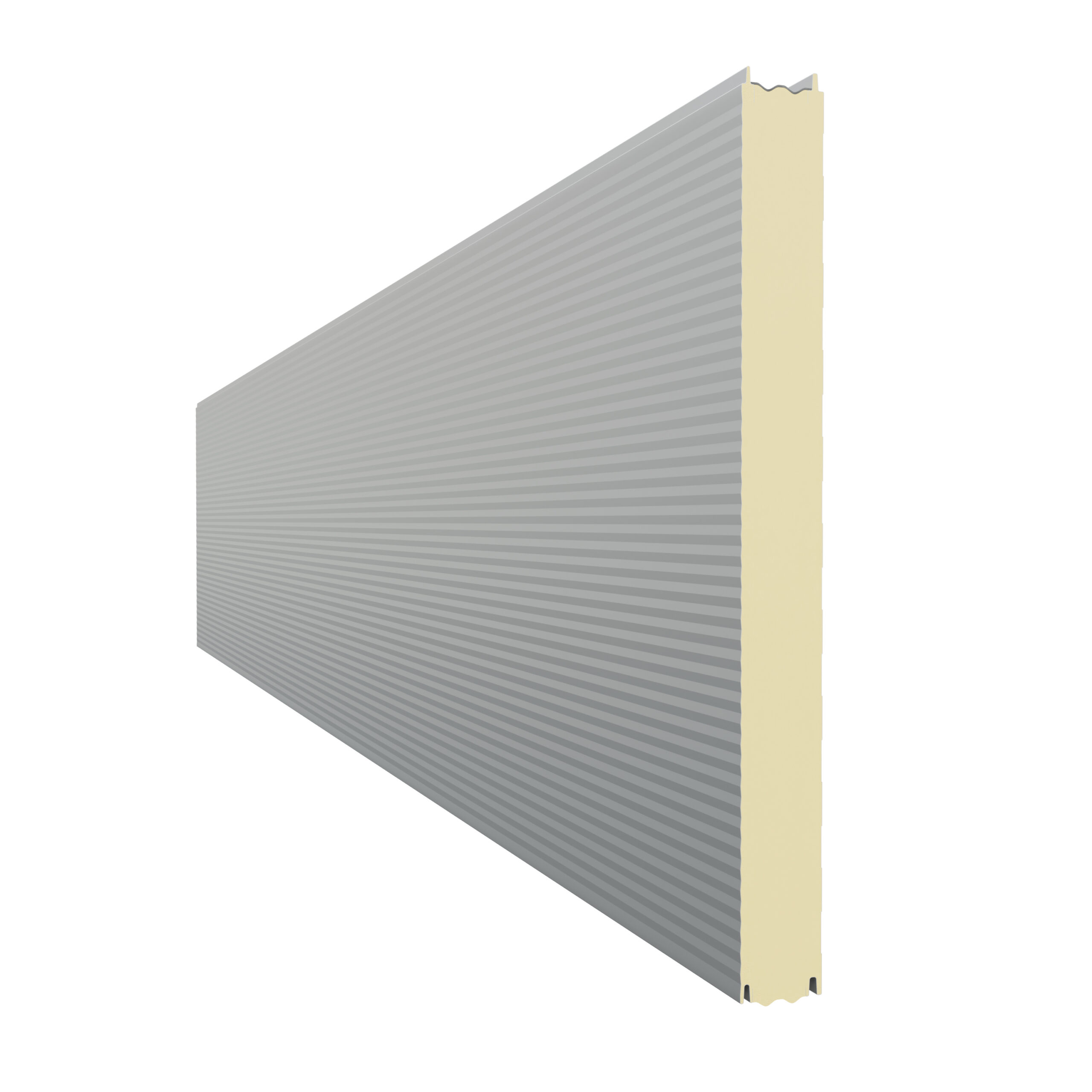

PolTherma TS Microprofiled M
