Catalogue of flashings
For the comprehensive finishing of a building, it is essential to use flashings from the Europanels range. The use of Europanels system flashings guarantees long-term and safe operation of the building.
Our qualified staff will help you select the appropriate flashings for the panels you have purchased.
We can manufacture flashings with the following parameters:
- Stainless steel sheet thickness: 1.0 mm
- Steel sheet thickness: up to 1.5 mm
- Aluminium sheet thickness: up to 2.0 mm
- Minimum hem: 15 mm
- Maximum length of the finished element: 6.4 m
- Maximum sheet feed width: 1,250 mm
- Maximum bending angle: 140°
- Possibility of manufacturing several elements simultaneously (e.g. 3 x 2 m; 2 x 3 m)
Why is it worth ordering flashings from Europanels?
- fast production of standard flashings from the Europanels catalogue, matched to the panel range
- possibility of manufacturing custom flashings according to the customer’s drawing
- 100% repeatable dimensions (particularly important for maintaining equal lengths and bending angles in serial production)
- custom lengths of manufactured elements (up to a maximum of 6.4 m)
- each element can have a tapered end, allowing perfect longitudinal joining (the flashings overlap by 50 mm, compensating for the sheet thickness and providing an even outer edge)
- possibility of manufacturing flashings in highly complex shapes
What equipment do we use to manufacture our flashings?

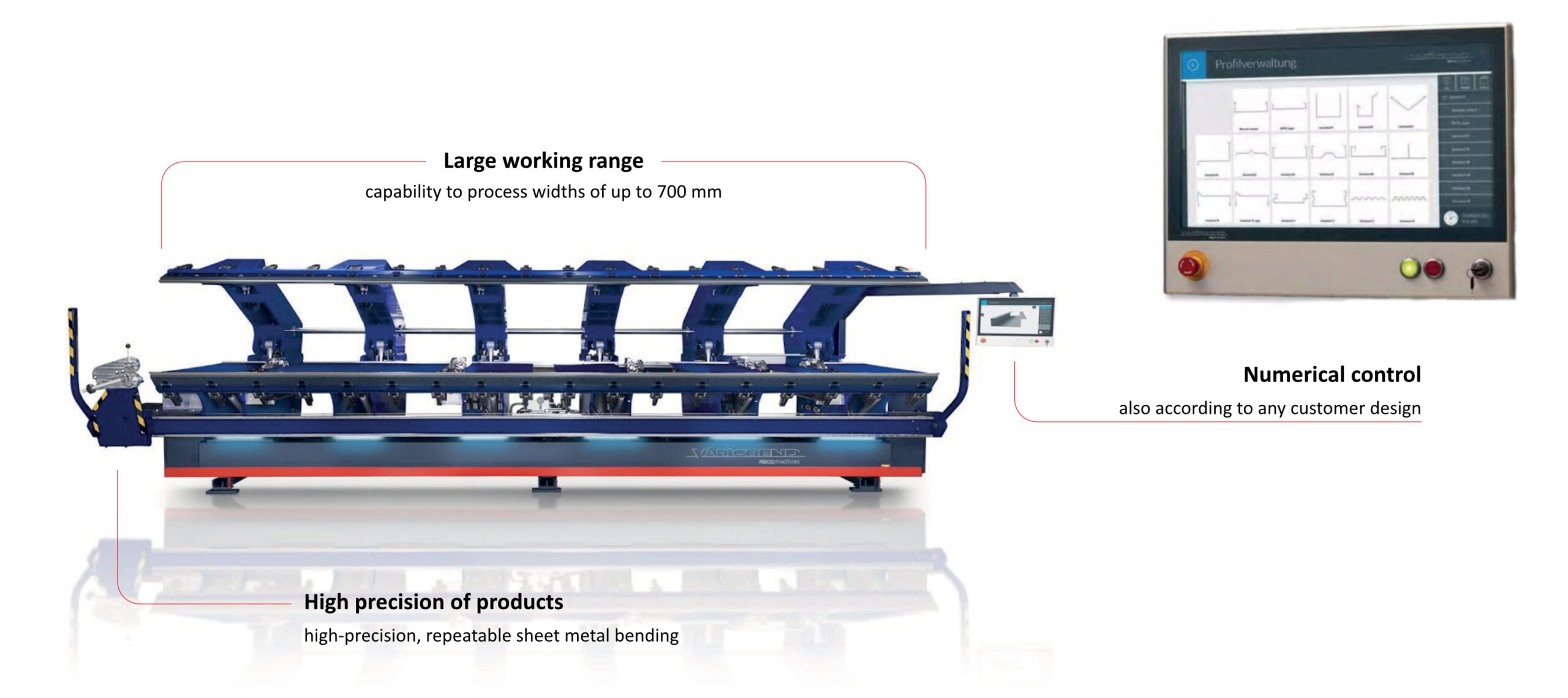

The highest product quality is guaranteed by the latest double CNC folding machine
Europanels has a state-of-the-art, computer-controlled folding machine that is among the best in its class. It is operated using a touchscreen panel, where the flashing is first drawn, then the dimensions and angles are adjusted with very high precision. The manufacturing process of the element is then checked to eliminate any potential collisions between the bent edges. Finally, the prepared metal sheets are fed into the machine, and shortly afterwards a finished element is produced exactly according to the entered data under the supervision of the operator. The sheet is held by hydraulically controlled “fingers”, bent in both directions (upwards and downwards), and moved automatically while maintaining very high precision.
