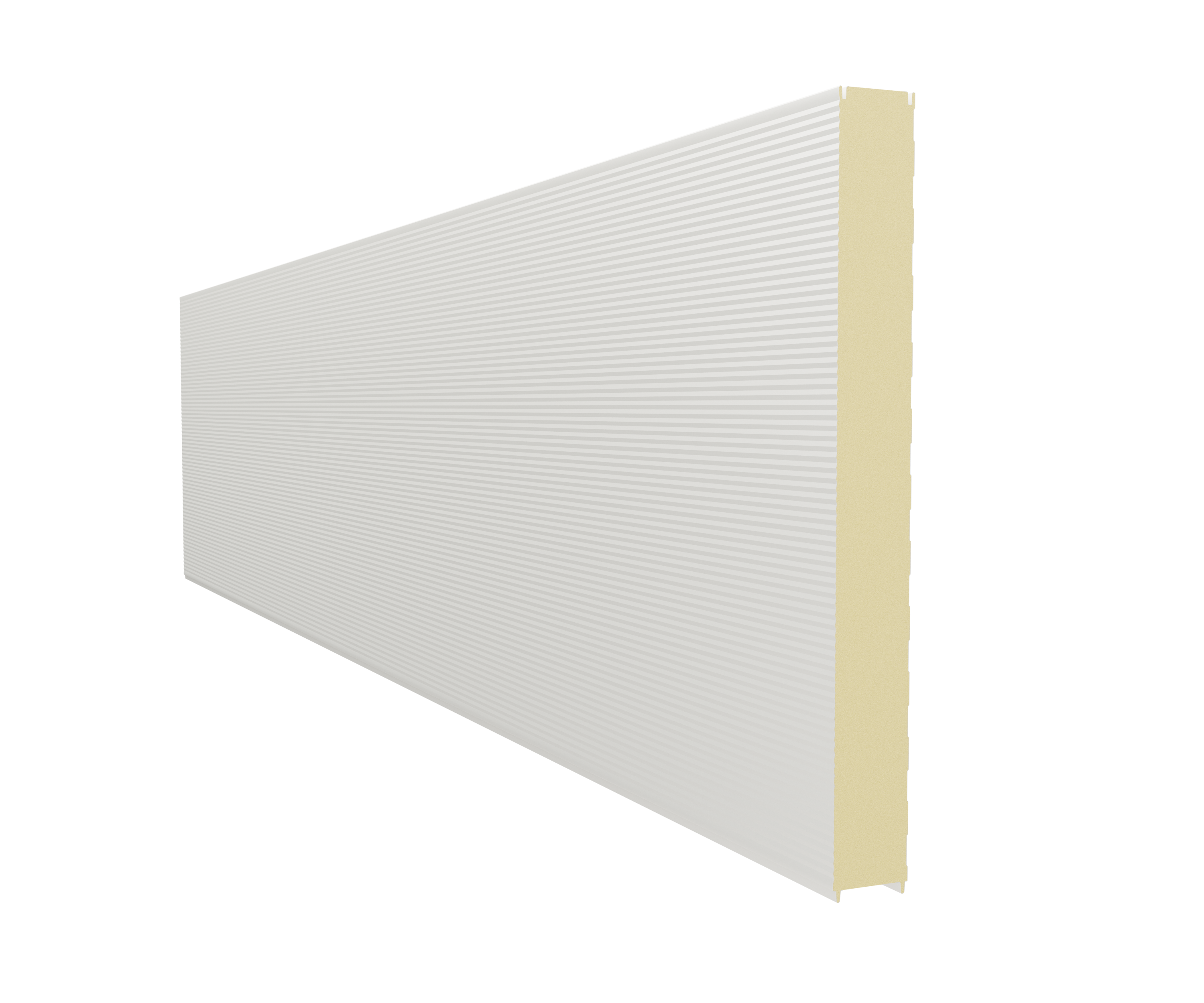

PolTherma CS X Super Microprofiled SM
PU cold storage sandwich panel PolTherma CS X
Excellent insulation, combined with interesting panel profiling
Overal width selection
Product description
PolTherma CS X is a specialized cold storage sandwich panel with a PU rigid foam core for refrigeration applications, attached to the substructure with a stainless steel fastener through the entire thickness of the panel. In addition to its refrigeration application, the panel will perform well wherever high thermal insulation of the walls is most important. PolTherma CS X sandwich panel is particularly recommended in agribuilding as a wall structure or in the form of a suspended ceiling, e.g. in fruit and vegetable stores, freezers, cold stores, butcheries or slaughterhouses. PolTherma CS X is an excellent choice for agribusiness.
CS X panels features favorable coverage widths in mm:
1150 , 1130, 1100, 1000.
Available profiling:
- linear profiling – PolTherma CS X L
- micro profiling – PolTherma CS X M
- super-micro profiling – PolTherma CS X SM
Recommendations: seal the joint with sealing compound (butyl) along the entire length of the panel – mandatory for ceilings, optional for walls
PolTherma CS X sandwich panel – application
- Coolers
- Freezers
- Slaughterhouses
- Butchers
- Fruit and vegetable storage facilities
- Food industry
- Agribusiness
Technical data
| Modular (coverage) width [mm]. | 1150, 1130, 1100, 1000 |
|---|---|
| Default coverage width | 1150 |
| Core | Europan PU Wall System Core – rigid polyurethane foam, λD = 0.022 W/(m∙K) at +10°C including the effect of aging, according to PN-EN 14509:2013-12 |
| Available board thicknesses [mm] |
Thermal conductivity coefficient λD [W/(m∙K)] |
Heat transfer coefficient Ud, S for profiling: M, L, SM, P [W/(m²∙K)]. | Weight 1 m² [kg]. |
Maximum number of panels in a package [pcs]. |
|---|---|---|---|---|
| 120 | 0,022 | 0,18 | 12,6 | 9 |
| 140 | 0,022 | 0,15 | 13,3 | 8 |
| 160 | 0,022 | 0,13 | 14,1 | 7 |
| 180 | 0,022 | 0,12 | 14,8 | 6 |
| 200 | 0,022 | 0,11 | 15,6 | 5 – 6 |
Profiling
PolTherma CS X Microprofiled M
PolTherma CS X Linear L
