PolTherma TS X Linear L
PU wall sandwich panel PolTherma TS X
Overall width and thickness selection
Product description
PolTherma TS X is a wall sandwich panel with a core of rigid PU foam, fixed to the support structure with a fastener passing through the entire thickness of the panel (through). Its main advantages are high rigidity and strength, simplicity of installation, very favorable coverage width in mm:
1150 , 1130, 1100, 1000.
The use of a special gasket in the joint improves the tightness of the panels connection.
PolTherma TS X is an example of a classic sandwich panel using the latest polyurethane technology. PolTherma TS X is an excellent choice for agribusiness.
Available profiling:
- linear profiling – PolTherma TS X L
- micro profiling – PolTherma TS X M
- super-micro profiling – PolTherma TS X SM
PolTherma TS X panels can be mounted vertically as well as horizontally to various support structures: steel, wood, reinforced concrete.
PolTherma TS X sandwich panel – application
- Commercial facilities
- Industrial facilities
- Halls
- Agribusiness
- Logistics centers
- Warehouses
Technical data
| Modular (coverage) width [mm]. | 1150, 1130, 1100, 1000 |
|---|---|
| Default coverage width | 1150 |
| Core | Europan PU Wall System Core – rigid polyurethane foam, λD = 0.022 W/(m∙K) at temp. +10°C, taking into account the effect of aging, in accordance with PN-EN 14509:2013-12 |
| Available board thicknesses [mm] |
Thermal conductivity coefficient λD [W/(m∙K)] |
Heat transfer coefficient Ud, S for profiling: M, L, SM, P [W/(m²∙K)]. | Weight 1 m² [kg]. |
Maximum number of panels in a package [pcs]. |
|---|---|---|---|---|
| 40 | 0,022 | 0,57 | 9,5 | 28 |
| 60 | 0,022 | 0,37 | 10,3 | 18 |
| 80 | 0,022 | 0,27 | 11,0 | 14 |
| 100 | 0,022 | 0,22 | 11,8 | 11-12 |
| 120 | 0,022 | 0,18 | 12,6 | 9 |
| 140 | 0,022 | 0,16 | 13,3 | 8 |
| 160 | 0,022 | 0,14 | 14,1 | 7 |
| 180 | 0,022 | 0,12 | 14,8 | 6 |
| 200 | 0,022 | 0,11 | 15,6 | 5 – 6 |
Profiling

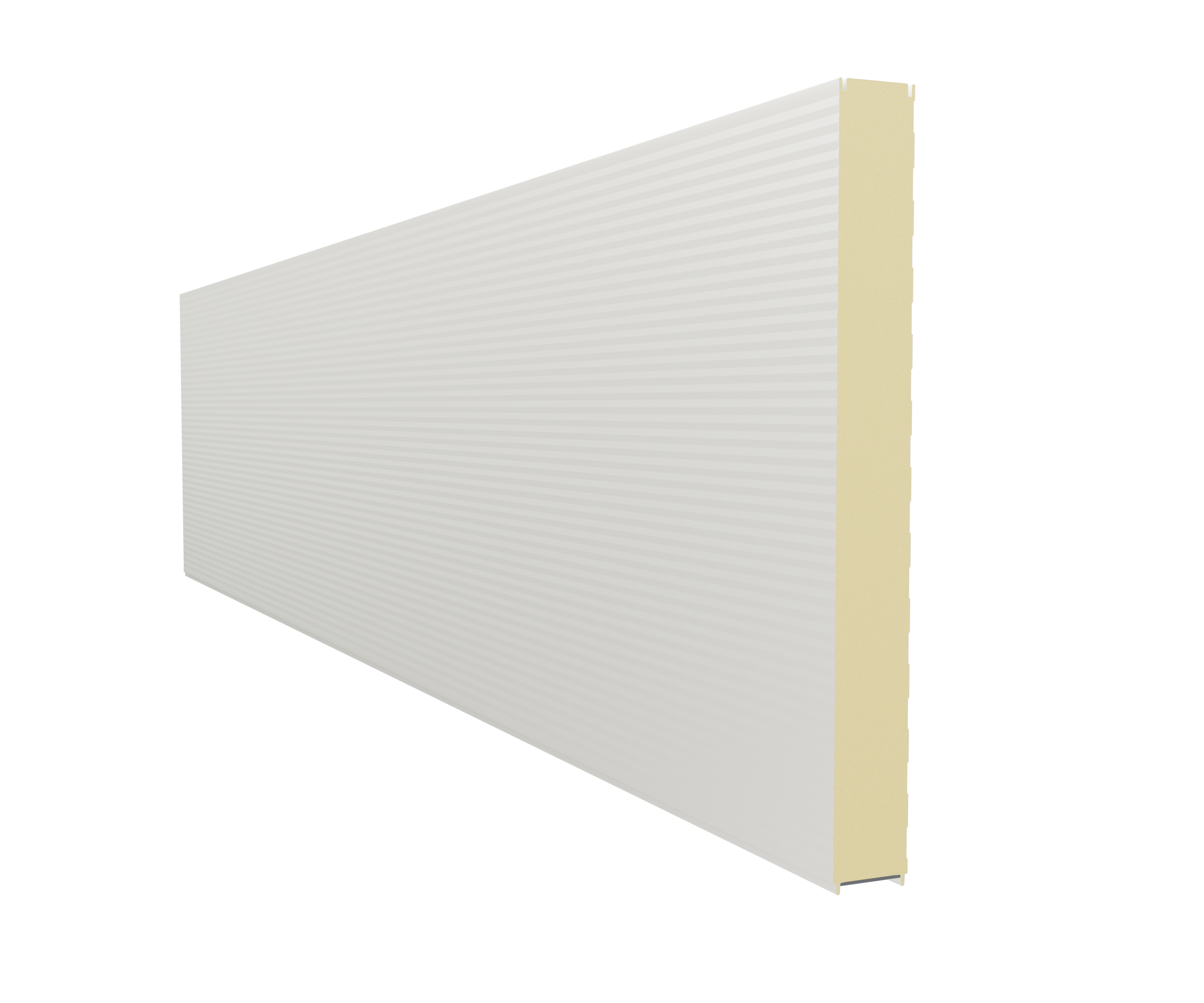

PolTherma TS X Microprofiled M
PolTherma TS X Super Microprofiled SM
