External profiling
ThermaDeck PRO Trapezoidal T
EPS roof sandwich panel ThermaDeck PRO
EPS roof panel with concealed or visible joint
Product description
ThermaDeck PRO is a roof sandwich panel with an EPS polystyrene core. They can be fastened to the substructure with a kit consisting of a hidden fastener and a screw (so-called hidden fastening) or directly with a through-screw on the through-screw (so-called visible fastening).
ThermaDeck PRO boards are designed for use as roofing in all types of buildings where the slope of the roof in the direction of the slope is at least 4° (7%) for a covering consisting of a single board (up to 7 m) or 6° (10%) for boards joined at length, installed with skylights, etc.
ThermaDeck PRO roof sandwich panel comes in profiling:

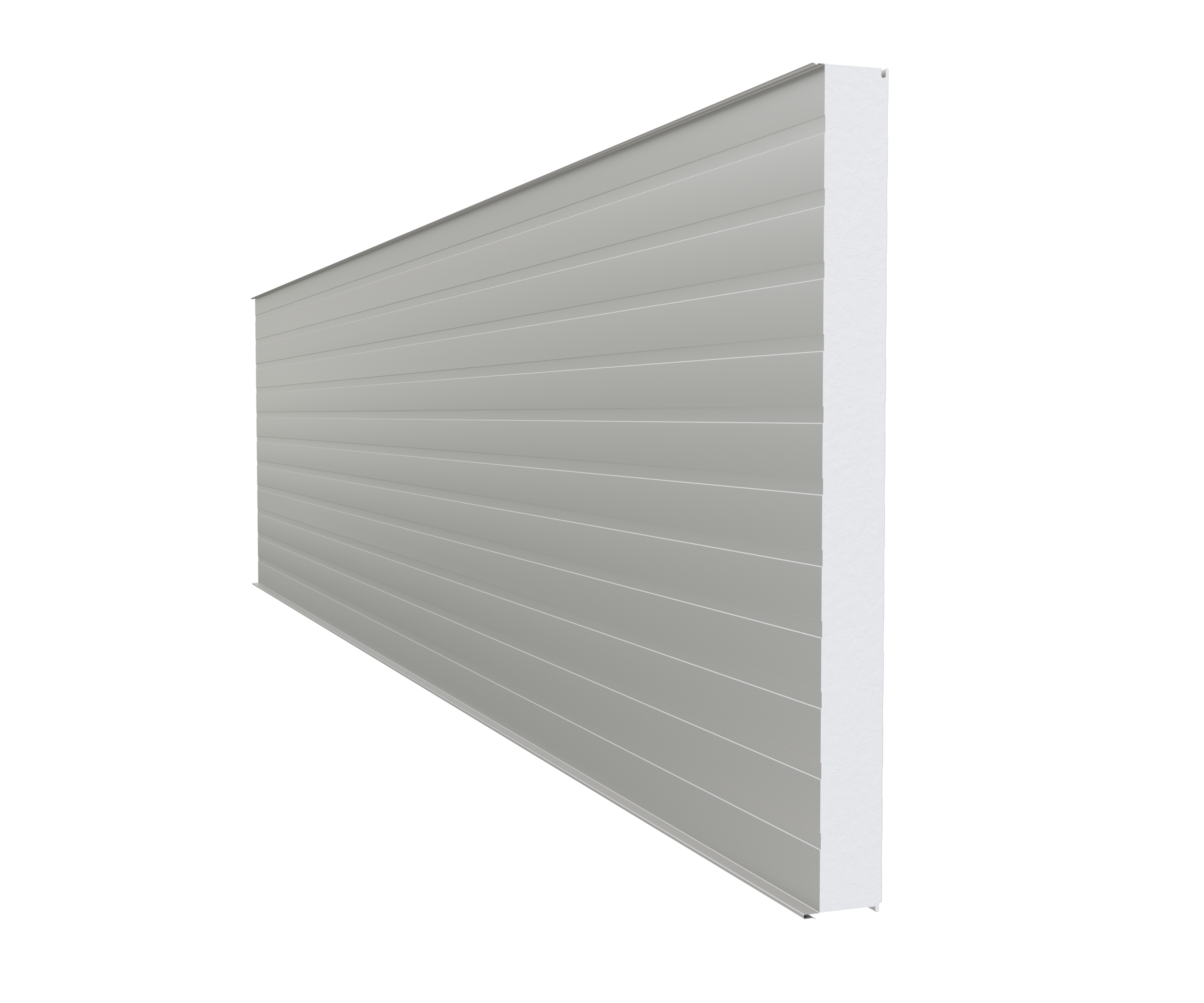

- trapezoidal profiling – ThermaDeck PRO T

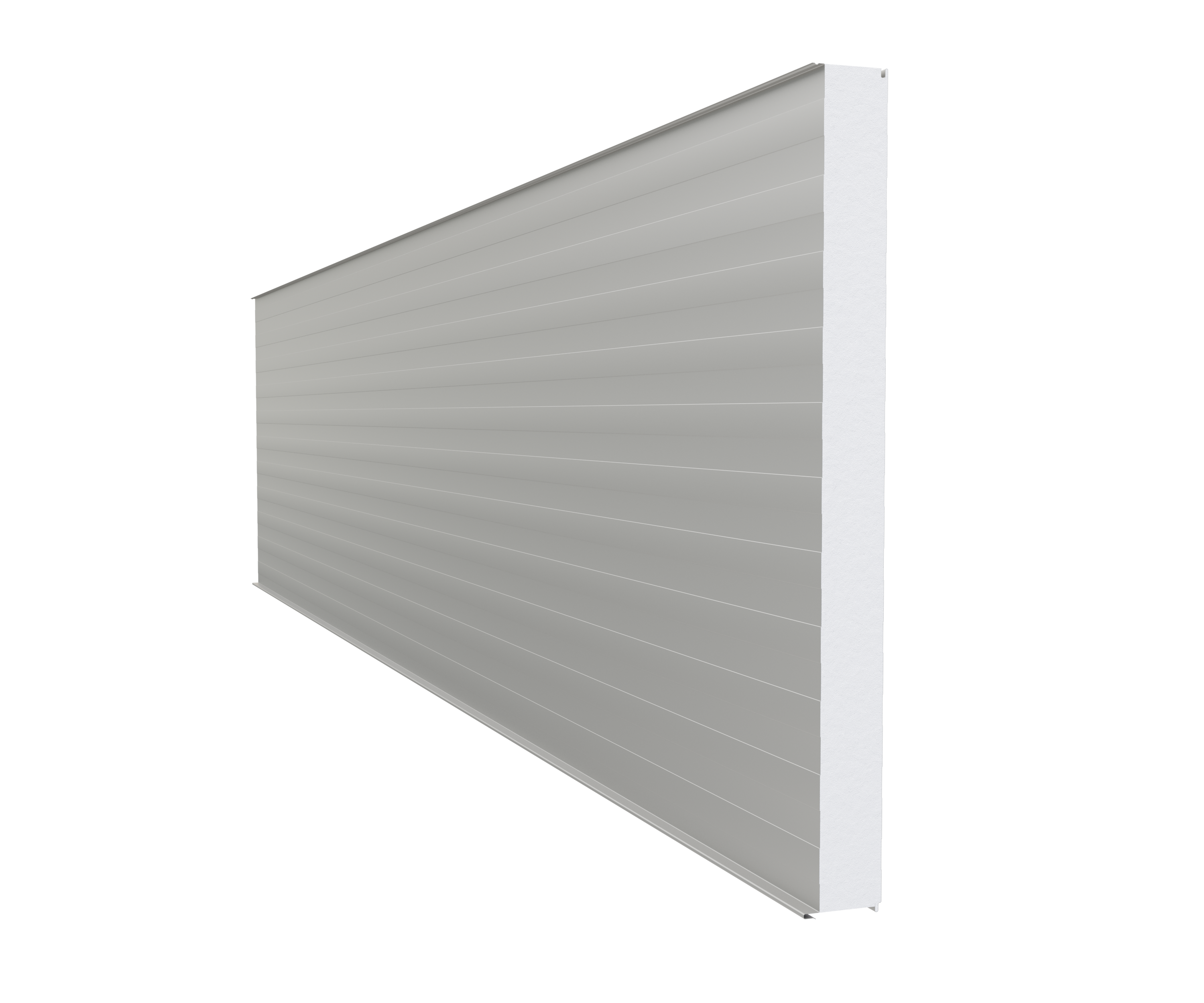

- linear profiling – ThermaDeck PRO L
ThermaDeck PRO sandwich panel – application
- Commercial facilities
- Industrial facilities
- Logistics centers
- Warehouses
- Halls
- Agribusiness
Technical data

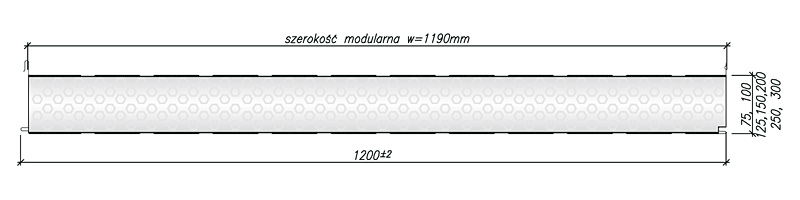

| Modular (coverage) width [mm]. | 1190 |
|---|---|
| Fire resistance | Class E |
| Core | Styrofoam of at least class E reaction to fire, self-extinguishing. Apparent density of 15 – 20 kg/m³. Thermal conductivity coefficient (declared value) λD = 0.040 W/(m∙K) |
| Available board thicknesses [mm] | Thermal conductivity coefficient λD [W/(m∙K )]. | Heat transfer coefficientUC [W/(m²∙K)]. | Weight of 1 m² [kg]. | Maximum number of boards in a package [pcs]. |
|---|---|---|---|---|
| 75 | 0,037 | 0,46 | 10,2 | 7-8 |
| 100 | 0,037 | 0,36 | 10,6 | 7-8 |
| 150 | 0,037 | 0,24 | 11,1 | 6 |
| 200 | 0,037 | 0,18 | 11,9 | 4-5 |
| 250 | 0,037 | 0,15 | 12,8 | 4 |
| 300 | 0,037 | 0,12 | 13,6 | 3 |

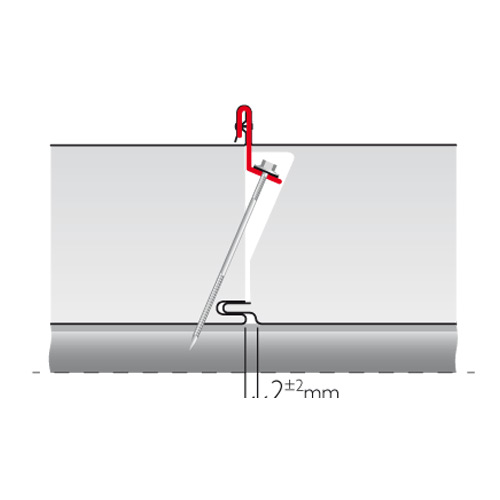

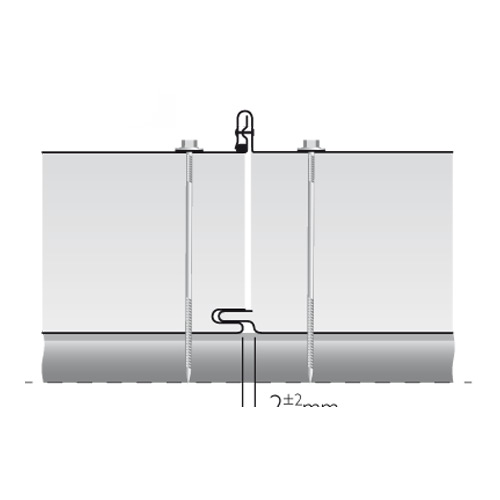

Connections
Profiling
ThermaDeck PRO L
Internal Profiling

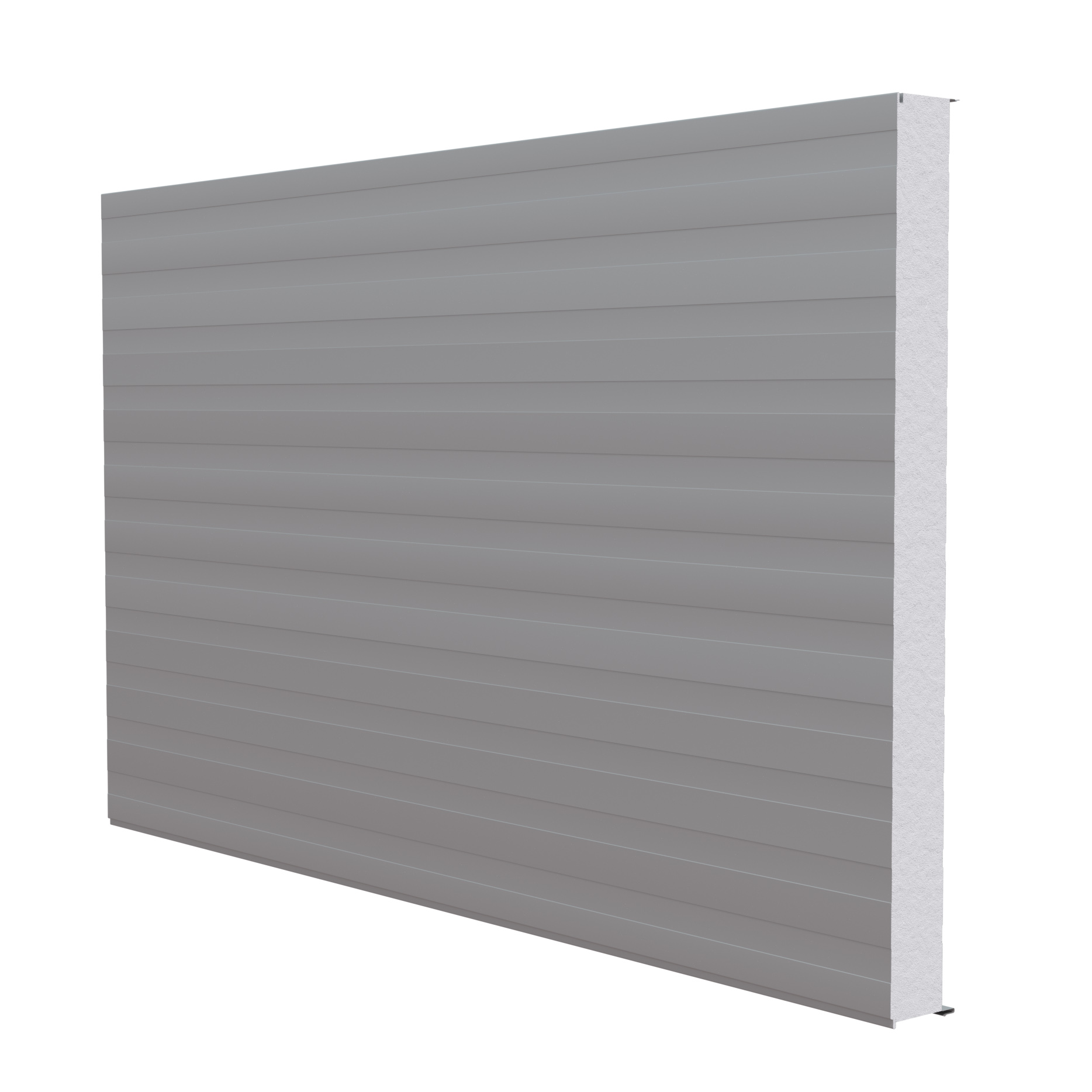

ThermaDeck PRO Linear L

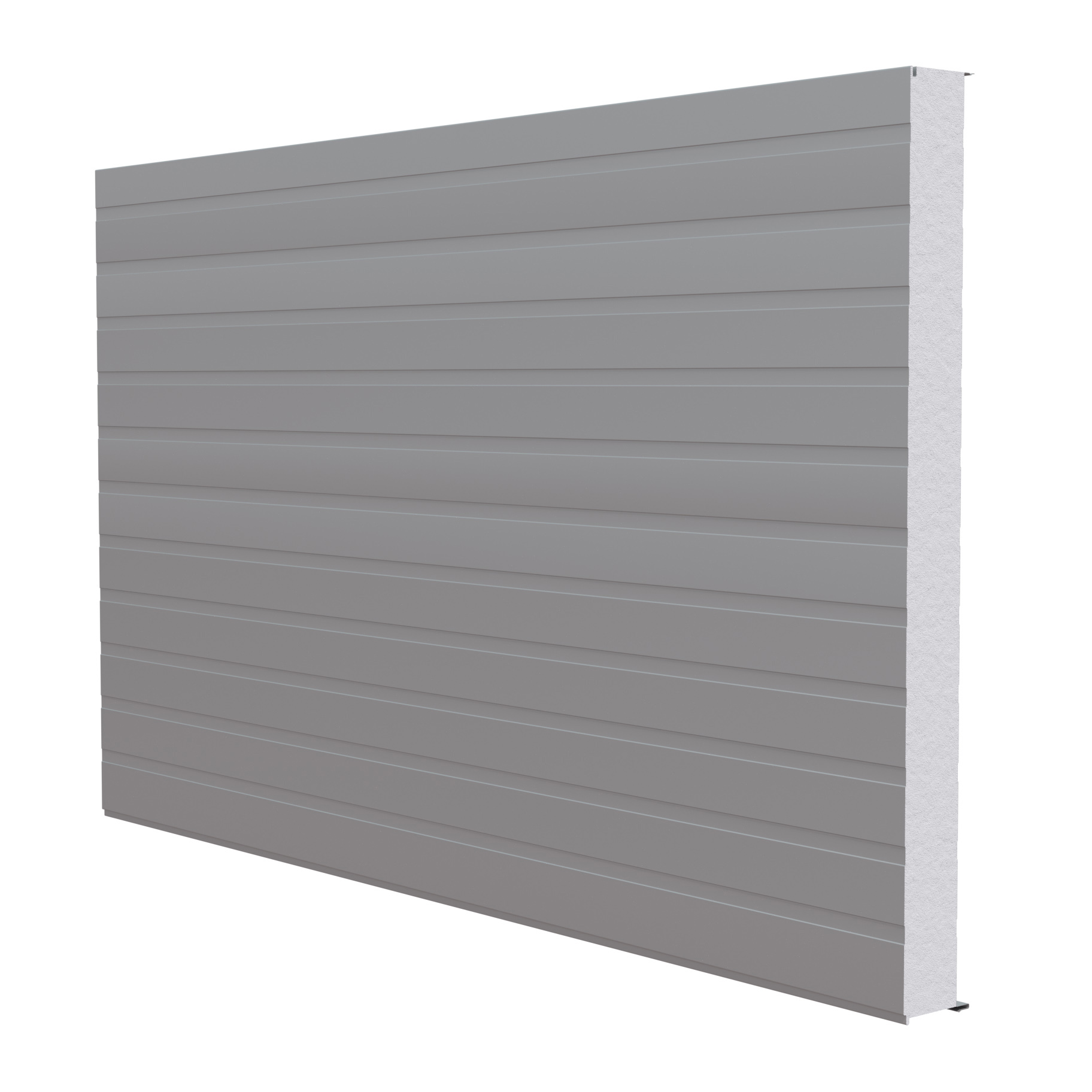

ThermaDeck PRO Trapezoidal T
