External profiling

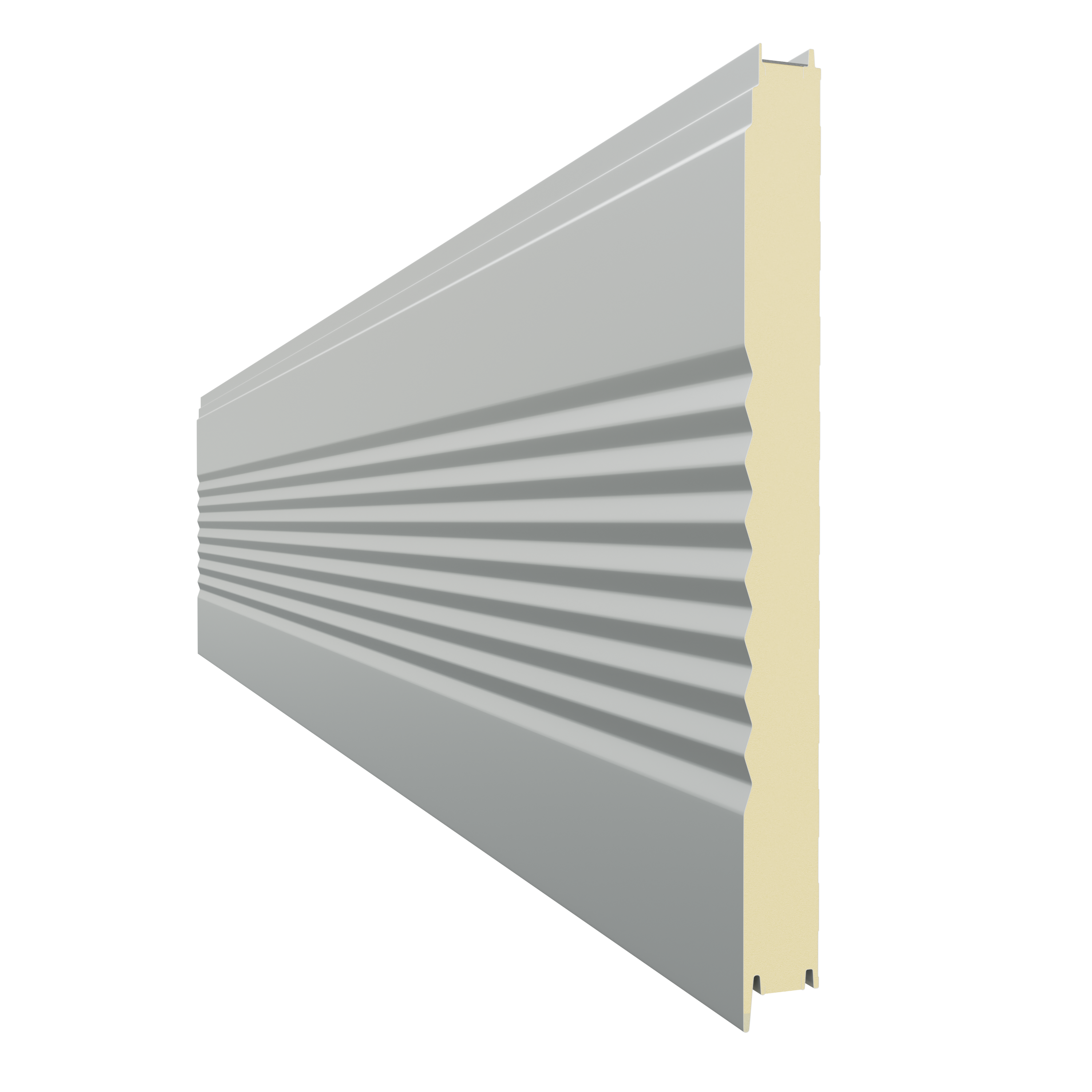

PolTherma DS Slant S
Concealed fixing
Modern embossing of the outer cladding

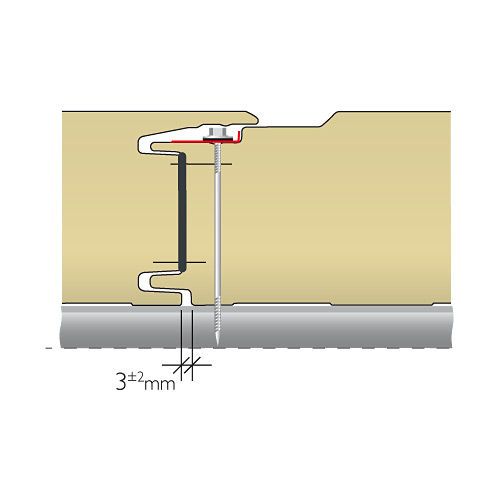

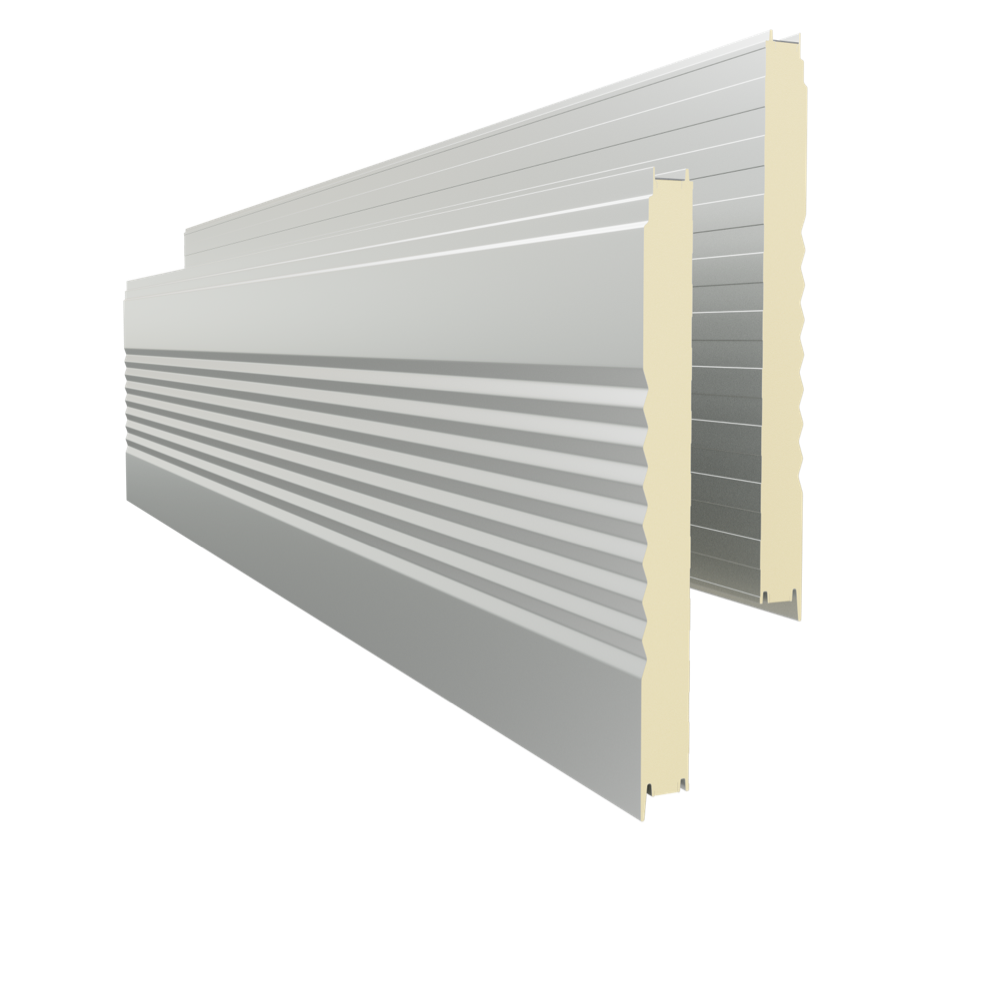

PolTherma DS is a wall sandwich panel with a core of rigid PU foam, fastened to the support structure invisibly (so-called Hidden Joint). The appropriate design of the panel’s edge makes it possible to hide the mounting screw in a specially profiled part of the lock, which is covered by the adjacent panel. In this way, the facade of the building is devoid of any visible fixings, being a coherent sheet of elegant embossing.
The decorative wall panel line is a unique offering on the construction market.

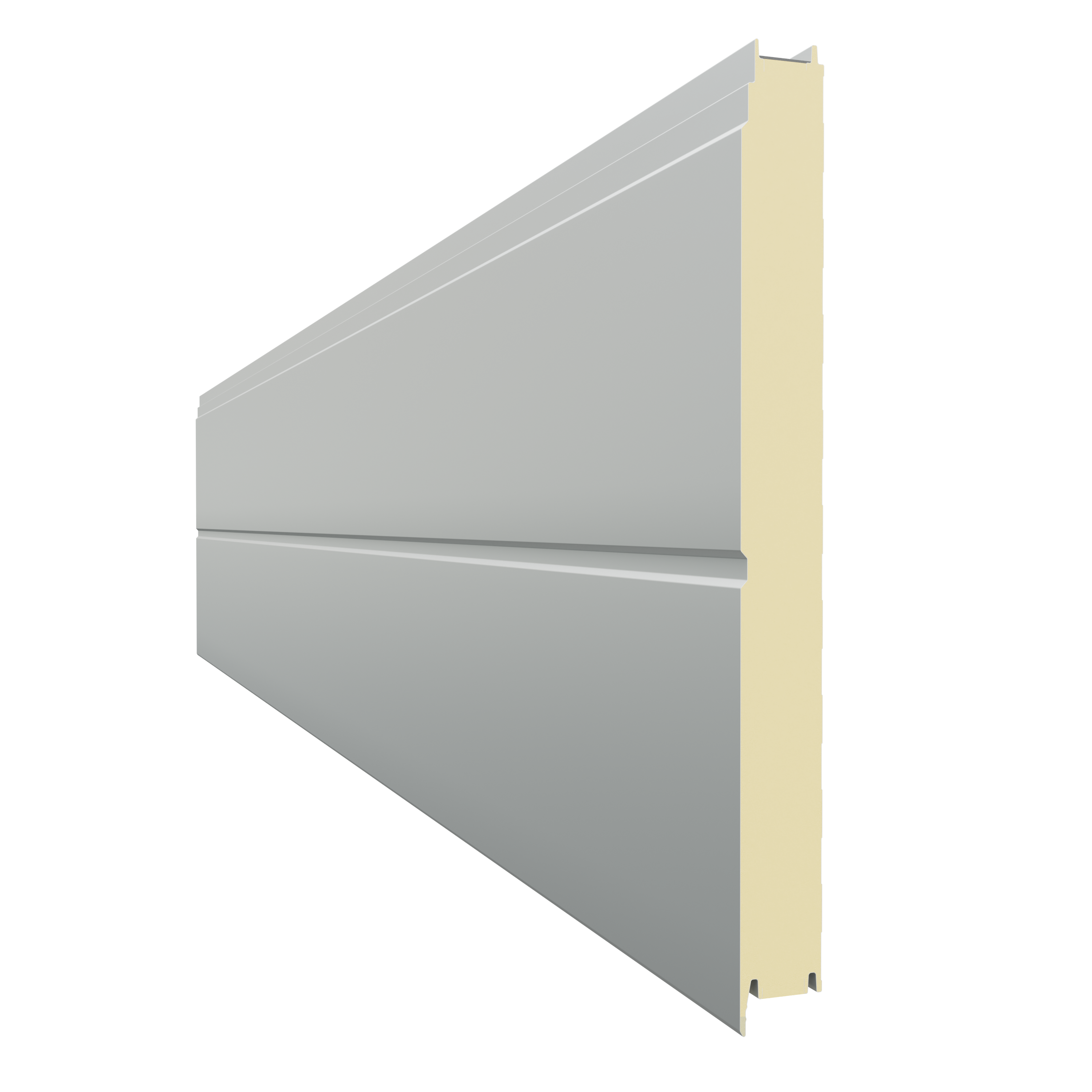

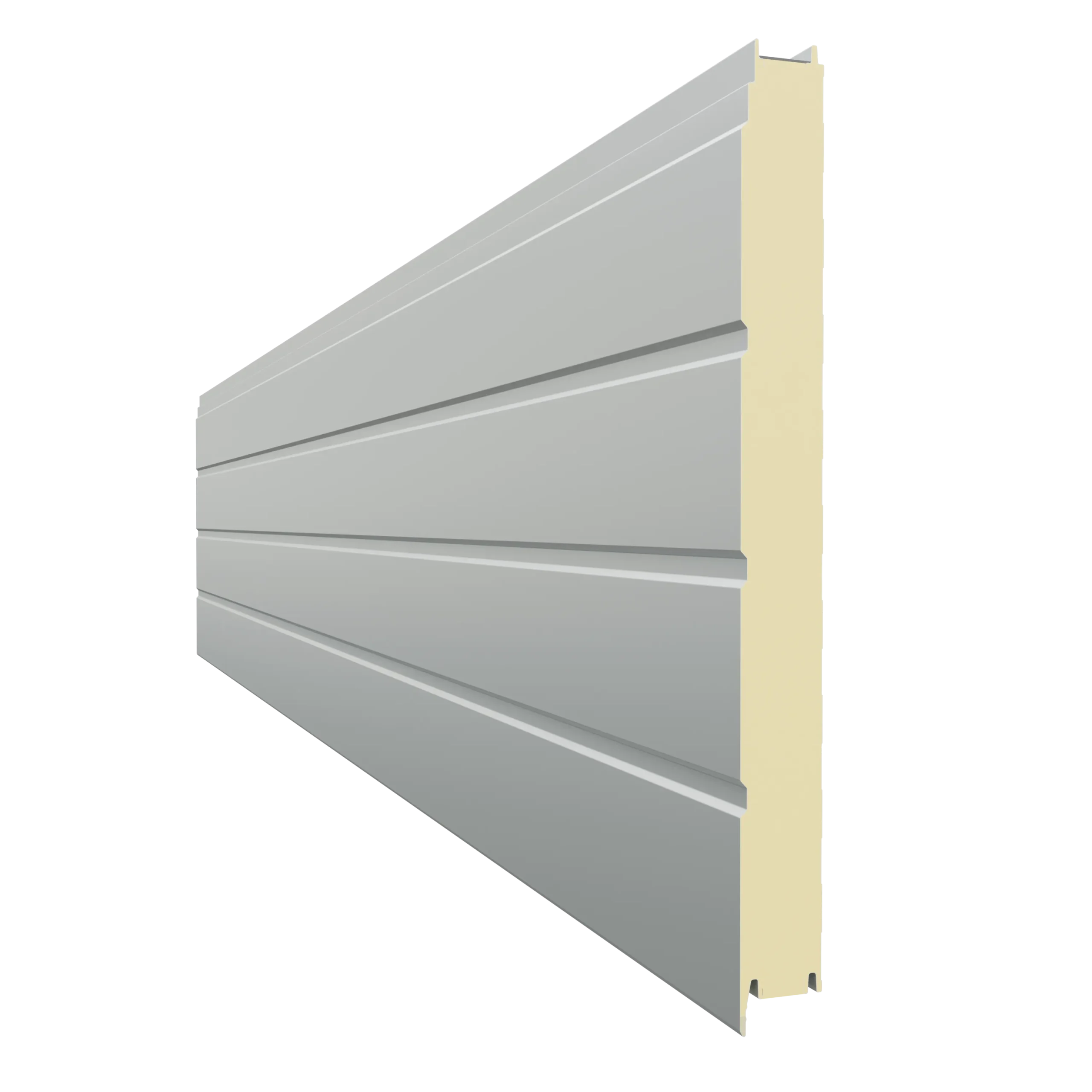

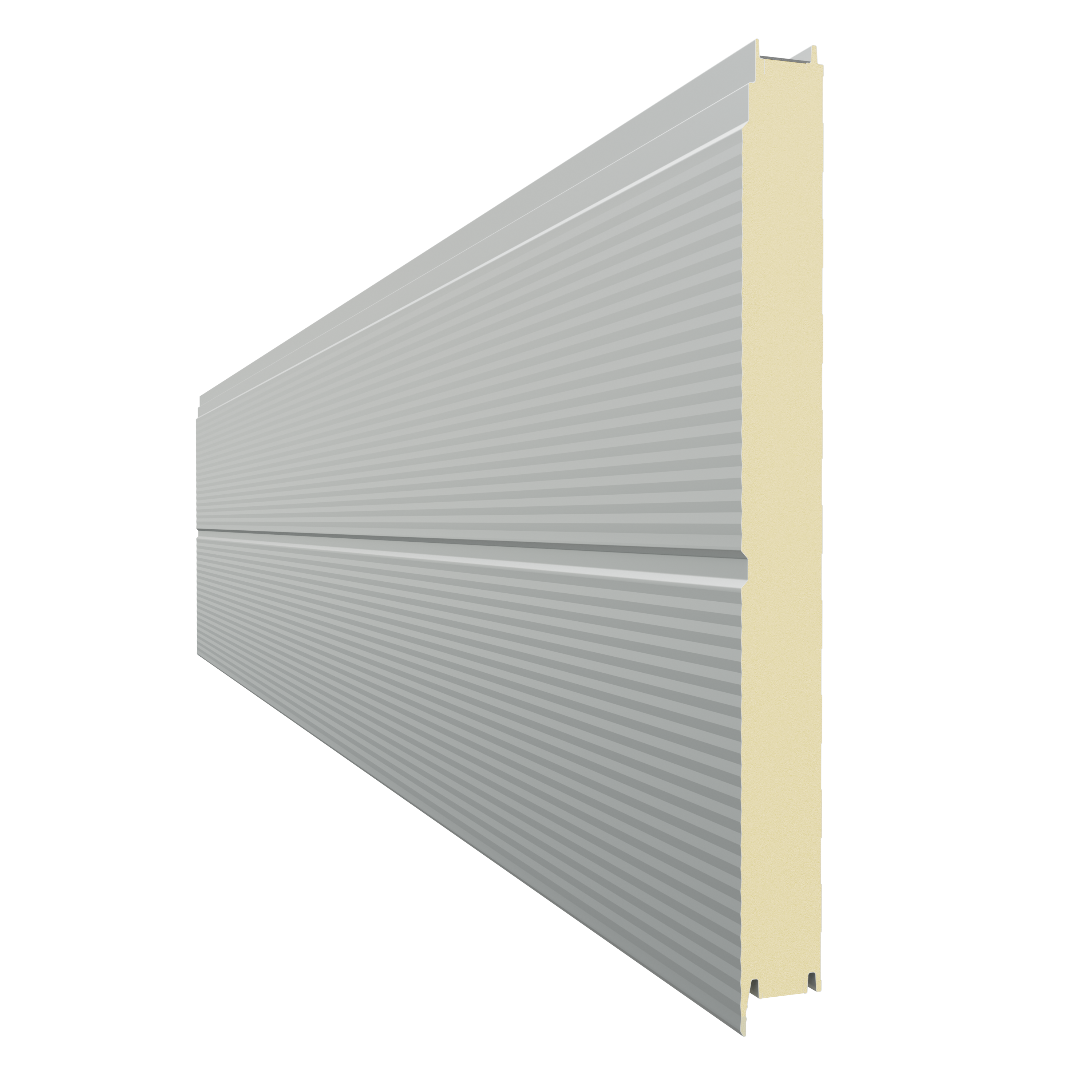

PolTherma DS wall sandwich panel is available in profiles:
PolTherma DS is an example of the most advanced technology currently available in sandwich panels worldwide, both in terms of polyurethane core molding, but also in terms of industrial design, related to advanced cladding profiling processes.
The unique PolTherma DS wallboard system was awarded the prestigious GOLD MEDAL of the Poznań International Fair and the AGROTECH Kielce International Fair.

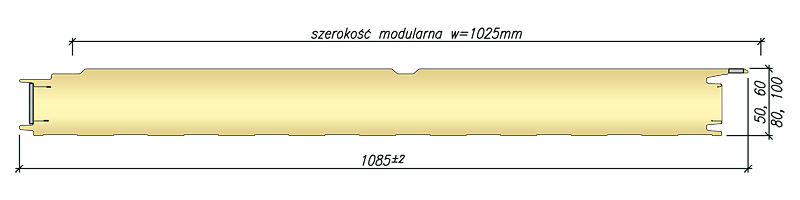

| Modular (coverage) width [mm]. | 1025 |
|---|---|
| Reaction to Fire | Bs1d0 |
| Core | Europan PU Wall System Core – rigid polyurethane foam, λD = 0.022 W/(m∙K) at +10°C including the effect of aging, according to PN-EN 14509:2013-12 |
| Available board thicknesses [mm] | Thermal conductivity coefficient λD [W/(m∙K )]. | The heat transfer coefficient Ud, S for S-profiling [W/(m²∙K)]. | The heat transfer coefficient Ud, S for MK profiling [W/(m²∙K)]. | Weight of 1 m² [kg]. | Maximum number of discs in a package [pcs]. |
|---|---|---|---|---|---|
| 60 | 0,022 | 0,46 | 0,44 | 11,5 | 18 |
| 80 | 0,022 | 0,32 | 0,31 | 12,3 | 14 |
| 100 | 0,022 | 0,25 | 0,24 | 13,0 | 11 |
| 120 | 0,022 | 0,20 | 0,20 | 13,8 | 9 |
| 160 | 0,022 | 0,15 | 0,15 | 15,3 | 7 |
